RY50N06C

發布者：日月辰科技

	規格型號	RY50N06C

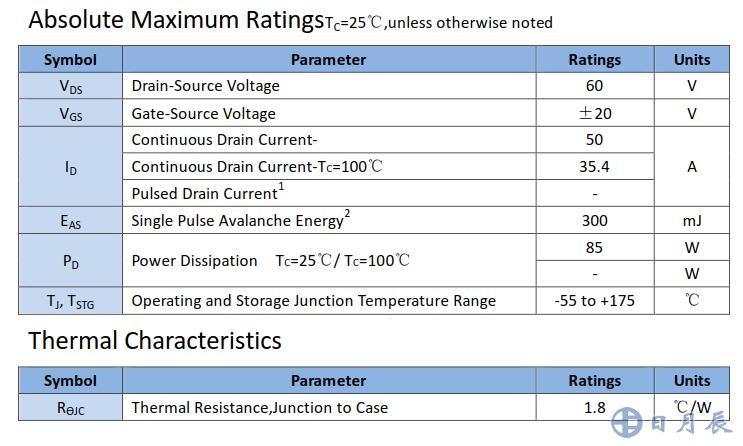

	產品參數	電壓：60V，電流：50A，Vgs：10V，Rds：0.02Ω

	產品品牌	日月辰	產品封裝	TO-251

	?
詳細說明

RY50N06C TO-251

Description

This N-Channel MOSFET uses advanced trench technology and design to provide excellent RDS(on) with low gate charge. It can be used in a wide variety of applications.

Features

1) VDS=60V,ID=50A,RDS(ON)< 20mΩ@VGS=10V

2) Low gate charge.

3) Green device available.

4) Advanced high cell denity trench technology for ultra RDS(ON).

5) Excellent package for good heat dissipation.

產品PDF資料下載：
